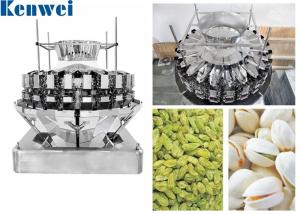

Multifunction 0.5L Three Layers 24 Heads Multihead Weigher Packaging Machine For Candy Raisins
The Multifunction 0.5L Three Layers 24 Heads Multihead Weigher is an usual mixing weigher for small granule such as seeds,peanuts,nuts,almonds,raisins,candy,pistachio,potato chips,dumplings and other granule,sheet,strip,round shape material,etc. It can combine different amounts of each product and reduce total package overweight to fractions of a gram. Two or more products are deposited at the top of the weigher, precisely weighed, and then combined as they are deposited into bags, jars, cartons, and other types of packages. Accurately and continuously weigh and mix different product ingredients to create unique blends.
Features
- Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
- Each drive board is independent, can be changed freely, even in different weighers.
- Modular circuit board, realize intelligent multiple sampling stable mode, weighing more accurately.
- Intelligent fault alarm prompt, more convenient maintenance.
- High-speed asynchronous discharge function, effectively prevent materials from blocking.
Mechanical character
- The universal hopper weighing unit enhances the interchangeability of parts of the whole machine.
-
Stable actuator design reduces the mechanical vibration and improves the load cell value accuracy.
-
Uniform design standards, and mould processing, contribute to better interchangeability for spare parts
-
The integrated welding of the mouth-shaped chassis and the middle seat greatly enhances the strength of the machine and makes the hopper's stability time shorter.
- With memory hopper, it can realize temporary storage of weighing materials, increase the combination probability, and effectively improve the combination accuracy.
- Adopt separate main vibrating disk, a single machine can be used for more than 2 kids (maximum 6 kinds) of mixed material formula application.
Technical specification
| Model | JW-A24 |
| Identify Code | A24-4-1 |
| Weighing Range | 12-1000g |
| Accuracy | X(0.5) |
| Max Speed | 60x6P/M |
| Hopper Volume | 0.5L |
| Control Panel | 10.1” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 110/220V/2800W/50/60Hz/13A |
| Packing Dimension(mm) | 2100(L)x1480(W)x1130(H) |
| Gross Weight | 650kg |
Application
It’s suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and another granule, sheet, strip, round shape material.
Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
Having a high-quality team with more than 30% professional technicians, which ensures our comprehensive capacity from R&D, manufacturing, marketing, installation, technical training to after-sales service for the complete automatic weighing packaging system.
