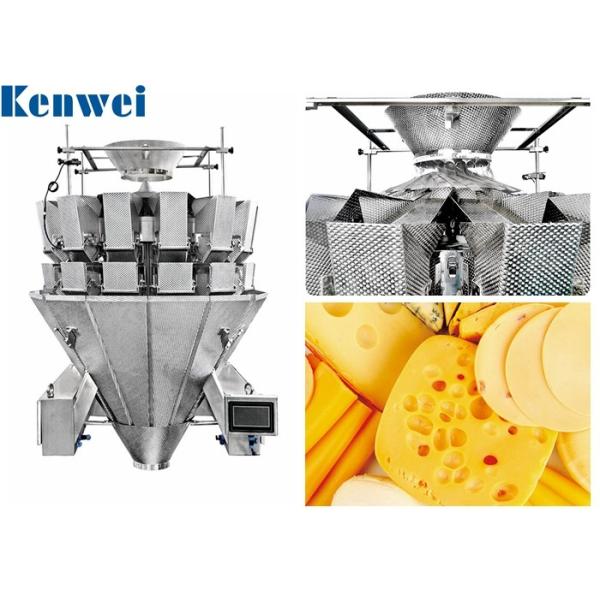

Competitive Price 12 Head Multihead Food Weigher For Cheese Jelly Candy
Our specially modified JW-A12 multihead weigher for cheese is built to the exact hygienic standards of the dairy industry, maintaining product integrity and quality through to packing.It is suitable for weighing soft and sticky material ,such as cheese,jelly candy,cotton candy,preserved fruits,candied fruit,etc.Our many years of experience running this highly variable product have allowed us to develop custom solutions to meet our customer’s diverse needs. Time goes on. Guangdong Kenwei Intellectualized Machinery Co., LTD. has grown into a manufacturer that specializes in developing, supplying, and marketing filling machines.
Features
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No product auto-pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, which can make the feeding more uniform.
5. 15 languages available for global markets.
6. New high frequence technology minimizes load cell vibrations
7. A wide range of options for head numbers, hopper sizes and discharge formats, with various accessories such as distributed cameras and infeed chutes also available.
Mechanical character
1. Speed adjustable rotary top cone is suitable for different product feeding.
2. Monitoring of the wear of consumable parts indicating point at which they need to be replaced
3. The declinational special linear vibrator pan, ensure smooth feeding.
4. 60° dimple discharge chute contributes to less sticky problems.
5. Innovative maintenance concept to reduce the time and costs required for maintenance, thereby minimizing downtime.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
7. It is suitable for weighing small weight granules such as seeds, tea, coffee beans, etc.
Technical specification
| Model | JW-A10 | JW-A12 | JW-A14 |
| Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
| Weighing Range | 10-1000g | 10-1500g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 100P/M | 100P/M |
| Hopper Volume | 1.6L/2.5L |
| Control Panel | 7” Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1200W/50/60Hz/10A | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1700(L)x1100(W)x1130(H) | 1750(L)x1130(W)x1420(H) |
| Gross Weight | 380kg | 450kg | 490kg |
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourselves to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
